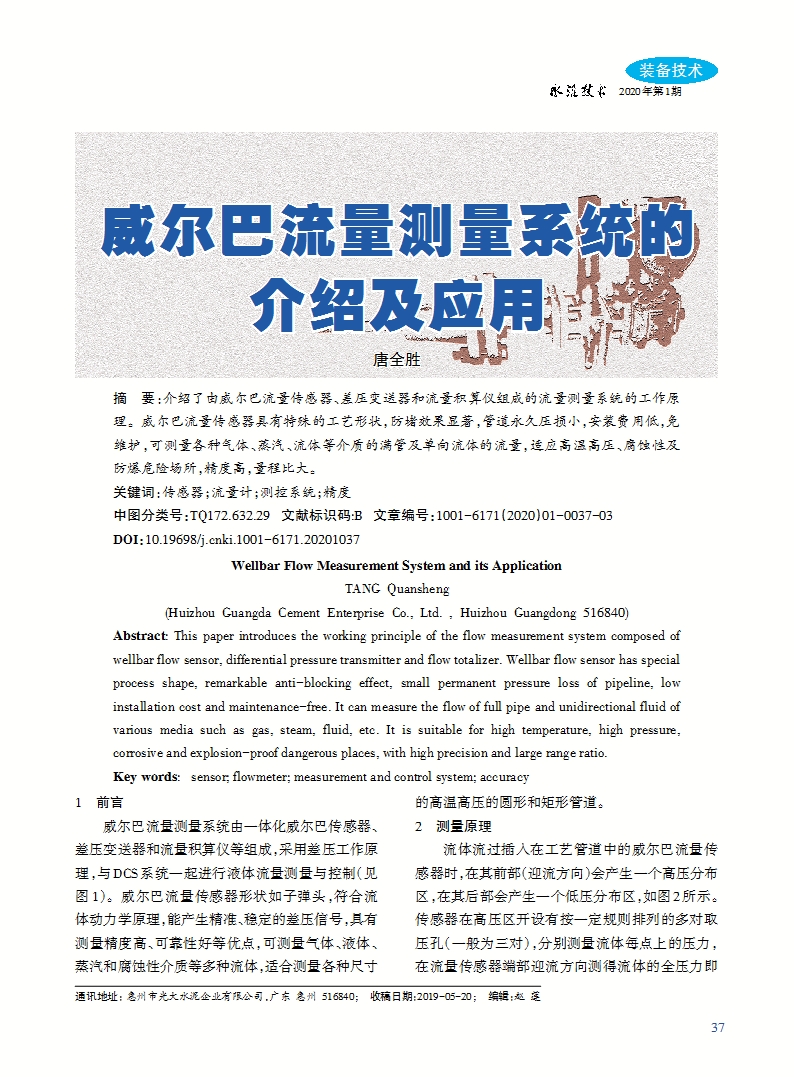

威尔巴流量测量系统的介绍及应用

doi:10.19698/j.cnki.1001-6171.20201037

下载:

PDF (2580KB)
输出: BibTeX | EndNote (RIS)

摘要介绍了由威尔巴流量传感器、差压变送器和流量积算仪组成的流量测量系统的工作原理。威尔巴流量传感器具有特殊的工艺形状，防堵效果显著，管道永久压损小，安装费用低，免维护，可测量各种气体、蒸汽、流体等介质的满管及单向流体的流量，适应高温高压、腐蚀性及防爆危险场所，精度高，量程比大。

	服务
	把本文推荐给朋友
	加入引用管理器
	E-mail Alert
	RSS
	（）
	作者相关文章
	唐全胜

关键词: 传感器流量计测控系统精度

Abstract: This paper introduces the working principle of the flow measurement system composed of wellbar flow sensor, differential pressure transmitter and flow totalizer. Wellbar flow sensor has special process shape, remarkable anti-blocking effect, small permanent pressure loss of pipeline, low installation cost and maintenance-free. It can measure the flow of full pipe and unidirectional fluid of various media such as gas, steam, fluid, etc. It is suitable for high temperature, high pressure, corrosive and explosion-proof dangerous places, with high precision and large range ratio.

Key words: sensor flowmeter measurement and control system accuracy

收稿日期: 2019-05-20 出版日期: 2020-01-25 发布日期: 2020-01-20 整期出版日期: 2020-01-25

ZTFLH:

TQ172.632.29

引用本文:

唐全胜.

威尔巴流量测量系统的介绍及应用

[J]. 水泥技术, 2020, 1(1): 37-39.
TANG Quansheng. Wellbar Flow Measurement System and its Application. Cement Technology, 2020, 1(1): 37-39.

链接本文:

http://www.cemteck.com/CN/10.19698/j.cnki.1001-6171.20201037 或 http://www.cemteck.com/CN/Y2020/V1/I1/37
