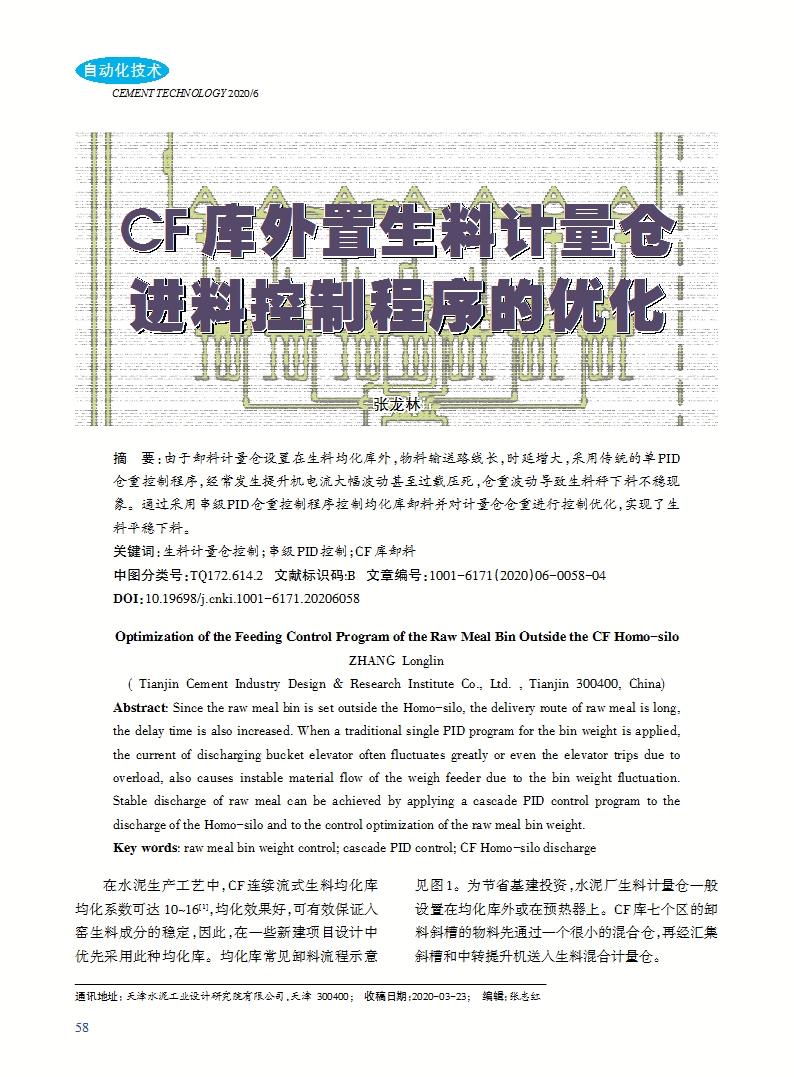

CF库外置生料计量仓进料控制程序的优化

doi:10.19698/j.cnki.1001-6171.20206058

摘要
相关文章
推荐阅读
Metrics

下载:

PDF (2794KB)
输出: BibTeX | EndNote (RIS)

摘要由于卸料计量仓设置在生料均化库外，物料输送路线长，时延增大，采用传统的单PID仓重控制程序，经常发生提升机电流大幅波动甚至过载压死，仓重波动导致生料秤下料不稳现象。通过采用串级PID仓重控制程序控制均化库卸料并对计量仓仓重进行控制优化，实现了生料平稳下料。

	服务
	把本文推荐给朋友
	加入引用管理器
	E-mail Alert
	RSS
	（）
	作者相关文章
	张龙林

关键词: 生料计量仓控制串级PID控制 CF库卸料

Abstract: Since the raw meal bin is set outside the Homo-silo, the delivery route of raw meal is long, the delay time is also increased. When a traditional single PID program for the bin weight is applied, the current of discharging bucket elevator often fluctuates greatly or even the elevator trips due to overload, also causes instable material flow of the weigh feeder due to the bin weight fluctuation. Stable discharge of raw meal can be achieved by applying a cascade PID control program to the discharge of the Homo-silo and to the control optimization of the raw meal bin weight.

Key words: raw meal bin weight control cascade PID control CF Homo-silo discharge

收稿日期: 2020-03-23 出版日期: 2020-11-25 发布日期: 2020-12-07 整期出版日期: 2020-11-25

ZTFLH:

TQ172.614.2

引用本文:

张龙林.

CF库外置生料计量仓进料控制程序的优化

[J]. 水泥技术, 2020, 1(6): 58-61.
ZHANG Longlin. Optimization of the Feeding Control Program of the Raw Meal Bin Outside the CF Homo-silo. Cement Technology, 2020, 1(6): 58-61.

链接本文:

http://www.cemteck.com/CN/10.19698/j.cnki.1001-6171.20206058 或 http://www.cemteck.com/CN/Y2020/V1/I6/58
