Abstract: In order to solve the problem of low production efficiency of manual bag insertion for cement packing workshop, which is difficult to adapt to the intelligent level of downstream production process packaging machine and improve production efficiency, a automatic bag insertion machine for cement sack is developed. Automatic bag insertion machine is composed of bag-arranging device, bag-inserting device and counting device,etc.The bag-arranging device adopts the mode of bag-arranging, bag-dividing and bag-delivering to ensure that the cement packaging bags into a stack of neatly placed, distributed without sticking;the bag insertion device is composed of a bag rotating machine, a bag turning machine and a bag insertion machine, and the insertion of the bag operation is completed collaboratively. The counting device is composed of two sets of spring induction counters, and the counting work of the packed cement bags is completed. After the application of automatic bag inserting machine, the production efficiency can reach up to 120t/h, and the success rate of slotting is more than 97%. It can automatically identify whether there is a cement sack on the packaging machine in the downstream production process, whether it is necessary to insert a bag, automatically follow the production speed of the packaging machine to complete stepless speed following, and the packaging machine perfect cooperation.

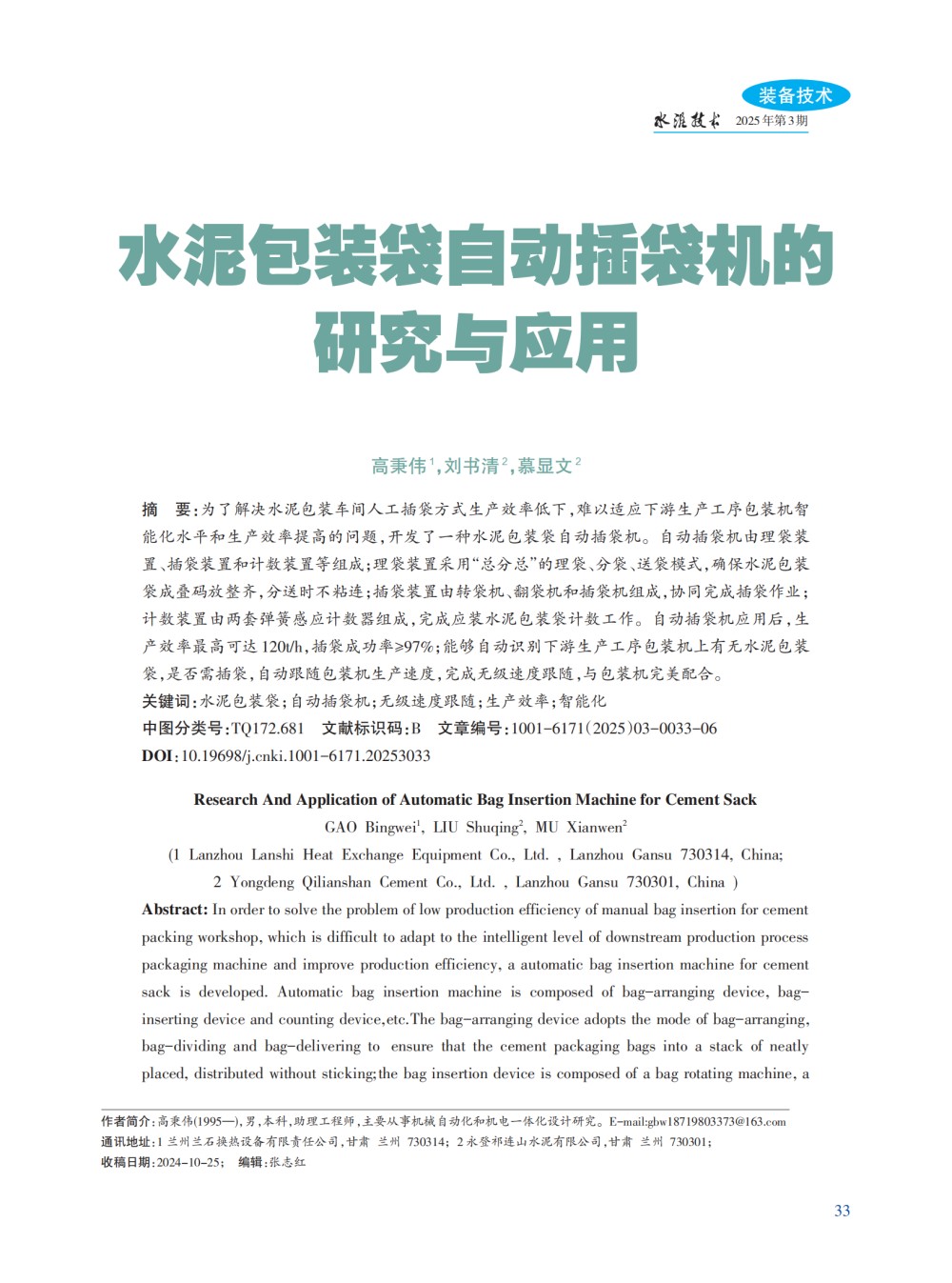

高秉伟, 刘书清, 慕显文. 水泥包装袋自动插袋机的研究与应用[J]. 水泥技术, 2025, 1(3): 33-38.
GAO Bingwei, LIU Shuqing, MU Xianwen. Research And Application of Automatic Bag Insertion Machine for Cement Sack. Cement Technology, 2025, 1(3): 33-38.
