水泥技术, 2025, 1(2): 5-11    doi: 10.19698/j.cnki.1001-6171.20252005
  节能降碳 本期目录 | 过刊浏览 | 高级检索 |

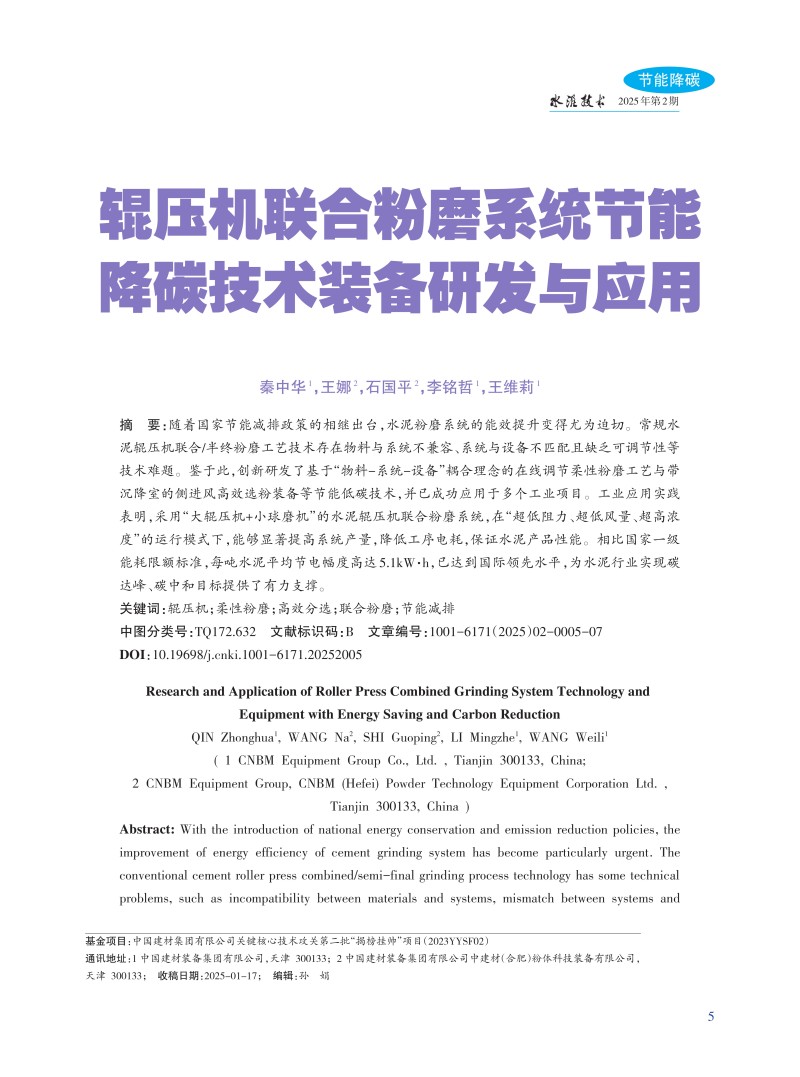

辊压机联合粉磨系统节能降碳技术装备研发与应用


1 中国建材装备集团有限公司,天津  300133

2 中国建材装备集团有限公司中建材(合肥)粉体科技装备有限公司,天津  300133

Research and Application of Roller Press Combined Grinding System Technology and Equipment with Energy Saving and Carbon Reduction

1 CNBM Equipment Group Co., Ltd. , Tianjin 300133, China;

2 CNBM Equipment Group, CNBM (Hefei) Powder Technology Equipment Corporation Ltd. ,Tianjin 300133, China

下载:  PDF (4870KB)
输出:  BibTeX | EndNote (RIS)
摘要

随着国家节能减排政策的相继出台,水泥粉磨系统的能效提升变得尤为迫切。常规水泥辊压机联合/半终粉磨工艺技术存在物料与系统不兼容、系统与设备不匹配且缺乏可调节性等技术难题。鉴于此,创新研发了基于“物料-系统-设备”耦合理念的在线调节柔性粉磨工艺与带沉降室的侧进风高效选粉装备等节能低碳技术,并已成功应用于多个工业项目。工业应用实践表明,采用“大辊压机+小球磨机”的水泥辊压机联合粉磨系统,在“超低阻力、超低风量、超高浓度”的运行模式下,能够显著提高系统产量,降低工序电耗,保证水泥产品性能。相比国家一级能耗限额标准,每吨水泥平均节电幅度高达5.1kW·h,已达到国际领先水平,为水泥行业实现碳达峰、碳中和目标提供了有力支撑。

服务
把本文推荐给朋友
加入引用管理器
E-mail Alert
RSS
作者相关文章
秦中华
王娜
石国平
李铭哲
王维莉
关键词:  辊压机')" href="#">

辊压机  柔性粉磨  高效分选  联合粉磨  节能减排

Abstract:

With the introduction of national energy conservation and emission reduction policies, the improvement of energy efficiency of cement grinding system has become particularly urgent. The conventional cement roller press combined/semi-final grinding process technology has some technical problems, such as incompatibility between materials and systems, mismatch between systems and equipment, and lack of adjustability. In view of this, energy-saving and low-carbon technologies such as online adjustable flexible grinding process based on the coupling concept of "material system equipment" and high-efficiency powder selection equipment with side inlet air with settling chamber have been innovatively developed, and have been successfully applied to many industrial projects. Industrial application practice shows that the cement roller press combined grinding system with "large roller press+small ball mill" can significantly increase the system output, reduce the process power consumption and ensure the performance of cement products under the operation mode of "ultra-low resistance, ultra-low air volume and ultra-high concentration”. Compared with the national first-class energy consumption quota standard, the average power saving per ton of cement is as high as 5.1kW·h, which has reached the international leading level, providing strong support for the cement industry to achieve the goal of carbon peak and carbon neutralization.

Key words:   ')" href="#">

     roller press    flexible grinding technology    high efficient separation    combined grinding system    energy saving and carbon reduction

收稿日期:  2025-01-17      修回日期:  2025-03-25           出版日期:  2025-03-25      发布日期:  2025-03-25      整期出版日期:  2025-03-25
ZTFLH:  TQ172.632
基金资助:

中国建材集团有限公司关键核心技术攻关第二批“揭榜挂帅”项目(2023YYSF02

引用本文:
秦中华, 王娜, 石国平, 李铭哲, 王维莉.

辊压机联合粉磨系统节能降碳技术装备研发与应用 [J]. 水泥技术, 2025, 1(2): 5-11.
QIN Zhonghua, WANG Na, SHI Guoping, LI Mingzhe, WANG Weili.

Research and Application of Roller Press Combined Grinding System Technology and Equipment with Energy Saving and Carbon Reduction . Cement Technology, 2025, 1(2): 5-11.
